CSX 5500 - Blue

All Aluminum Shelby Series 2

CSX 5503

One Of Three - Original Prototype Series 2’s

Each Shelby Series 2 is unique One of One Build

2850 LBS, Supercharge powered, Aluminum Composite Carbon fiber Body and Aluminum Honeycomb Frame

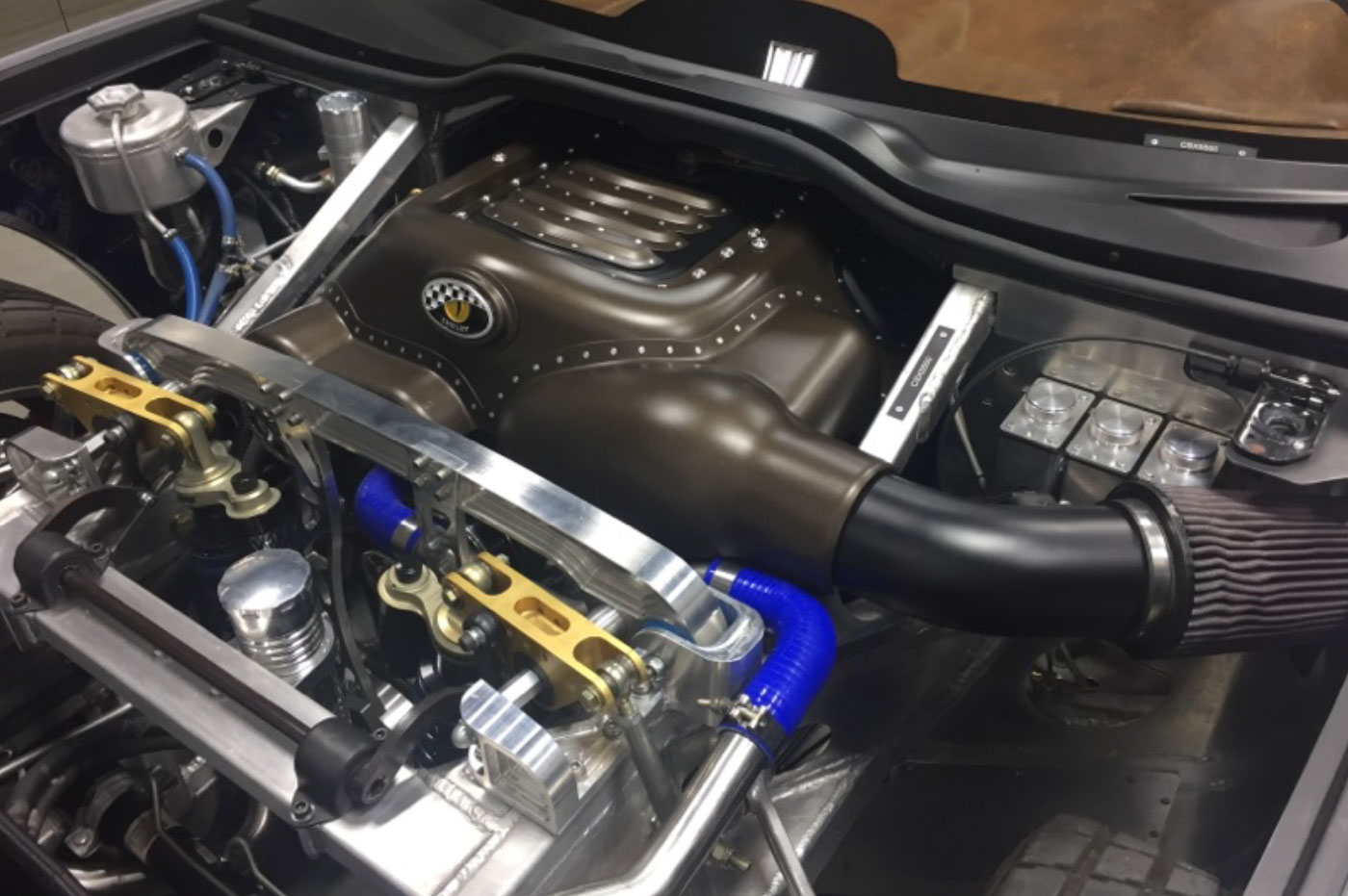

DRIVETRAIN

  • Supercharged power plant starting at 500 Hp with option to over 800 Hp
  • Race proven Aluminum 5 Speed Transaxle or 5 Speed Trans Coupled to 9” Alum IRS rear
  • Custom Stainless Ceramic Coated Headers, Pipes & Mufflers
  • All Aluminum Racing Radiators with Remote Oiler Cooler

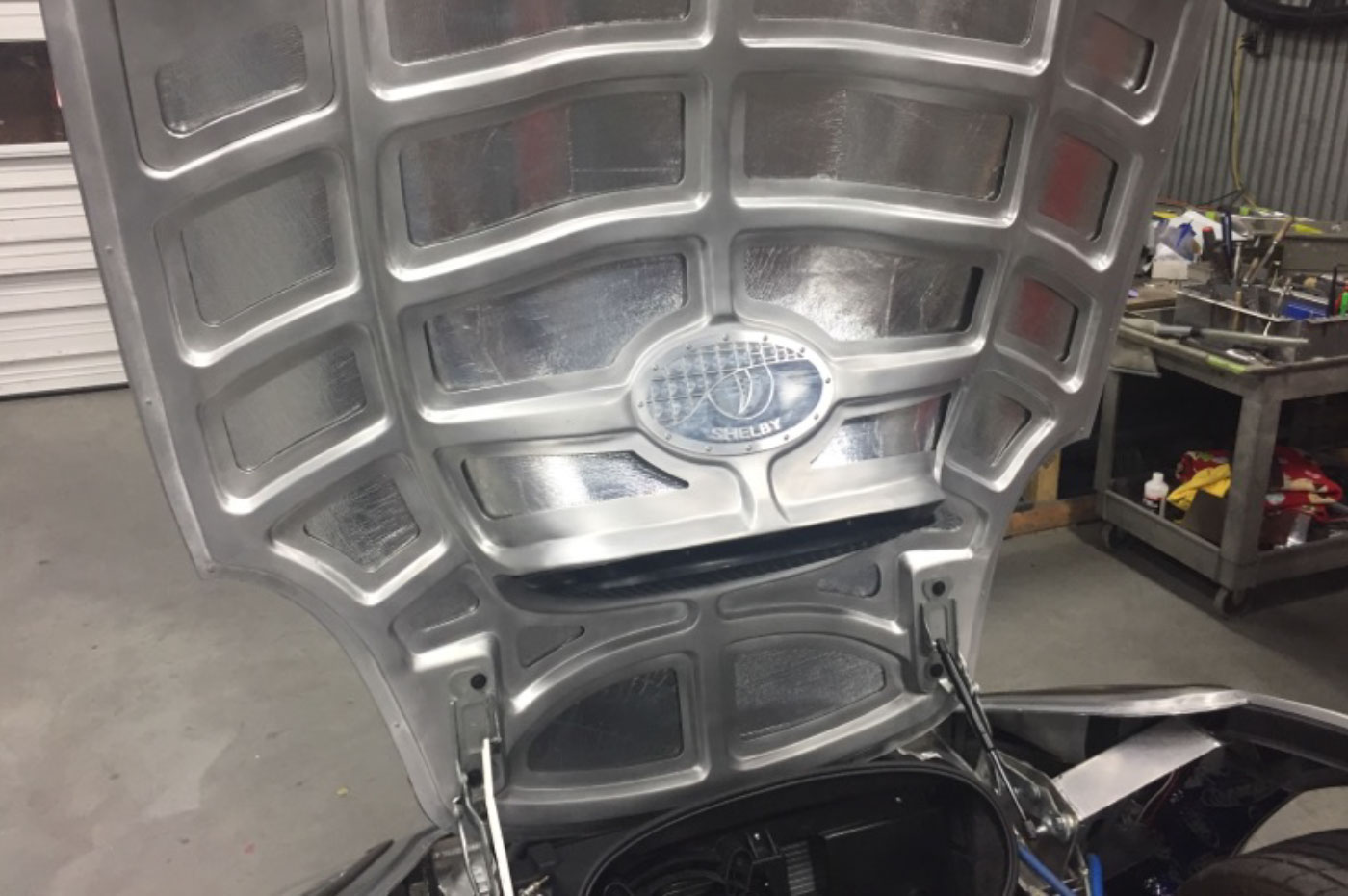

BODY OPTIONS

  • All Aluminum Hand Formed and gas Welded, Brushed, Polished or painted finish
  • Ultra Light weight  Aerospace grade multi-layered cross ply all Carbon Fiber body and inter panels – Painted with Strip

FRAME

  • Original Shelby CSX 5000 Frame’s
  • 6061 T-6 Heat-Treated Aluminum
  • Aerospace Grade Composite Honeycomb Floor & Side Panels
  • Twice The Torsional (52 Hertz) & Stiffness Of Most Sport Cars
  • One Of The Lightest & Stiffest Chassis In The World At Only 254 Lbs

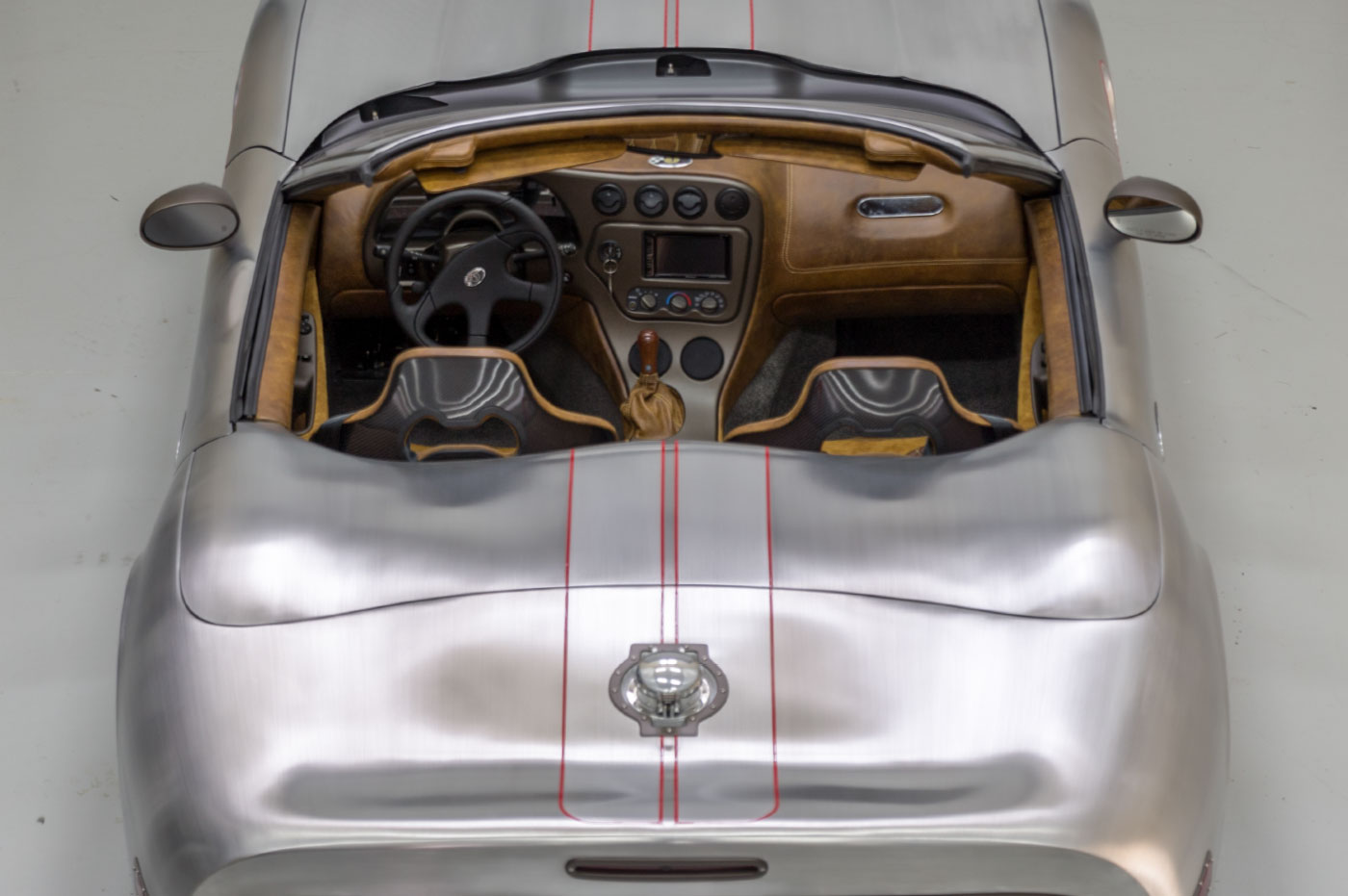

INTERIOR

  • Custom Hand Rubbed and Finished Leather Double Stitched Interior
  • Carroll  Shelby Signature custom carbon fiber or leather Dash,  Seats, and Interior
  • Premium Sounds and Navigation System with Hands Free and camera system
  • 4-Point Roll Bar or  6 point roll cage
  • 3 or 5 point Seat belts

SUSPENSION

  • Front & Rear Independent Suspension
  • With Integrated Multi-Link Assemblies With Anti-Roll Bars
  • Mounted On FII Roadsters Billeted Aluminum Front and Rear Arch Assemblies
  • Custom Penske Racing Inboard Coil-over Dual-Adjustable Dampers, Variable Spring-Height

BRAKES, WHEELS  & TIRES

  • Dual Masters Cylinder with in Cotpit Front  & Rear Bias Control Option
  • Custom Big Brake 6 Piston SLR Calipers Front & Rear
  • Next Generation Shelby Series 2 Wheel, 19 by 11.5  fronts and 19 by 13.5 Rear
  • Pilot Super  Sport   295 30 19 /  345 30 19
